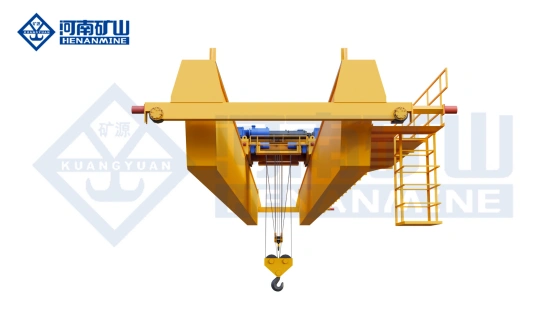

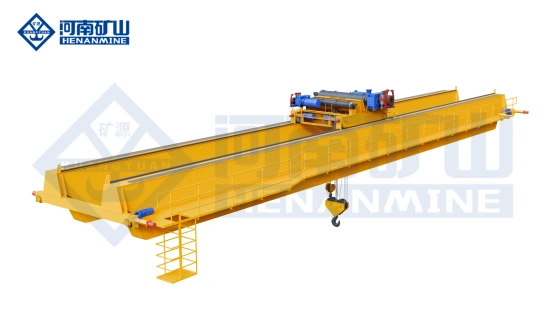

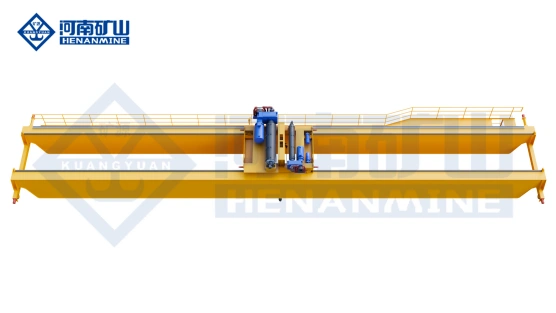

The New Type of Hook Bridge Crane is a next-generation overhead lifting solution manufactured by Henan Mine, developed based on advanced European design concepts with modular, lightweight, and parametric engineering principles for modern industrial facilities requiring high efficiency, energy savings, and intelligent material handling. Compared to traditional QD-type bridge cranes, this new series achieves 15-30% weight reduction, 30% height reduction, and 20% energy savings, featuring a skewed box-type main beam connected to end beams with high-strength bolts, full variable frequency drive (VVFD) across all motions for stepless speed control, and a low headroom profile that minimizes limit dimensions while maximizing effective lifting height. Operating under duty class A3 to A7 with lifting capacities from 5 to 1000 tons, the crane integrates intelligent options including electronic anti-sway (up to 95% swing reduction), inching movement, dead slow function, zero speed hover, multi-hook coordination, and wireless expansion to the Crane Industrial Internet Platform for full lifecycle management.

The new type of double-girder crane is a new type of crane with maintenance-free, modular, lightweight, energy conservation and environmental protection, as well as high technological content, which is completed on the basis of introducing and digesting advanced foreign technologies, guided by the modular design theory, and by means of modern computer technology, using new materials and new processes.

The New Type Hook Bridge Crane adopts modular, standardized, and serialized design principles with modern computer-aided design technology. Compared to traditional cranes, it achieves 15-30% weight reduction, 30% height reduction, and 20% energy savings, significantly lowering factory construction costs and daily operating expenses. The crane features full frequency control for smooth starting and braking, optional high-precision anti-sway technology that reduces load swing by over 95% with positioning accuracy up to ±2mm, and optional online monitoring and remote maintenance capabilities. It is widely used in machinery manufacturing, warehouses, power plants, ports, steel mills, automotive factories, aerospace facilities, and railway maintenance workshops for general cargo, machinery, steel materials, pallets, and container lifting. Typical specifications include lifting capacity from 5 to 1000 tons, span from 10.5 to 40 meters, lifting height from 6 to 24 meters, duty class A3 to A7, lifting speed 0.35–48 m/min, power supply 380V/50Hz three-phase AC, and ambient temperature range from -20°C to +50°C.

Core Applications – New Type Of Hook Bridge Crane
1.General Manufacturing Workshops – Handles machinery components, heavy equipment, and assemblies on production lines, assembly bays, and maintenance stations with precise positioning and energy-efficient operation.
2.Warehouses & Logistics Centers – Loads, unloads, stacks, and retrieves pallets, raw materials, finished goods, and oversized cargo with low headroom design maximizing storage space in height-restricted facilities.
3.Steel Service Centers & Fabrication Shops – Lifts steel coils, plates, structural beams, and fabricated components for shearing, slitting, welding, and assembly operations in metal processing plants.
4.Power Generation & Heavy Industrial Plants – Installs and maintains turbines, generators, transformers, pumps, and heavy equipment in power plants, refineries, and large-scale industrial facilities.
5.Automotive & Aerospace Manufacturing – Positions car bodies, engine blocks, aircraft fuselage sections, and wing assemblies on assembly lines with anti-sway technology for smooth, vibration-free material flow.
6.Railway Maintenance & Locomotive Shops – Lifts locomotive engines, railcar bodies, wheelsets, traction motors, and heavy railway components for repair, overhaul, and replacement operations.
