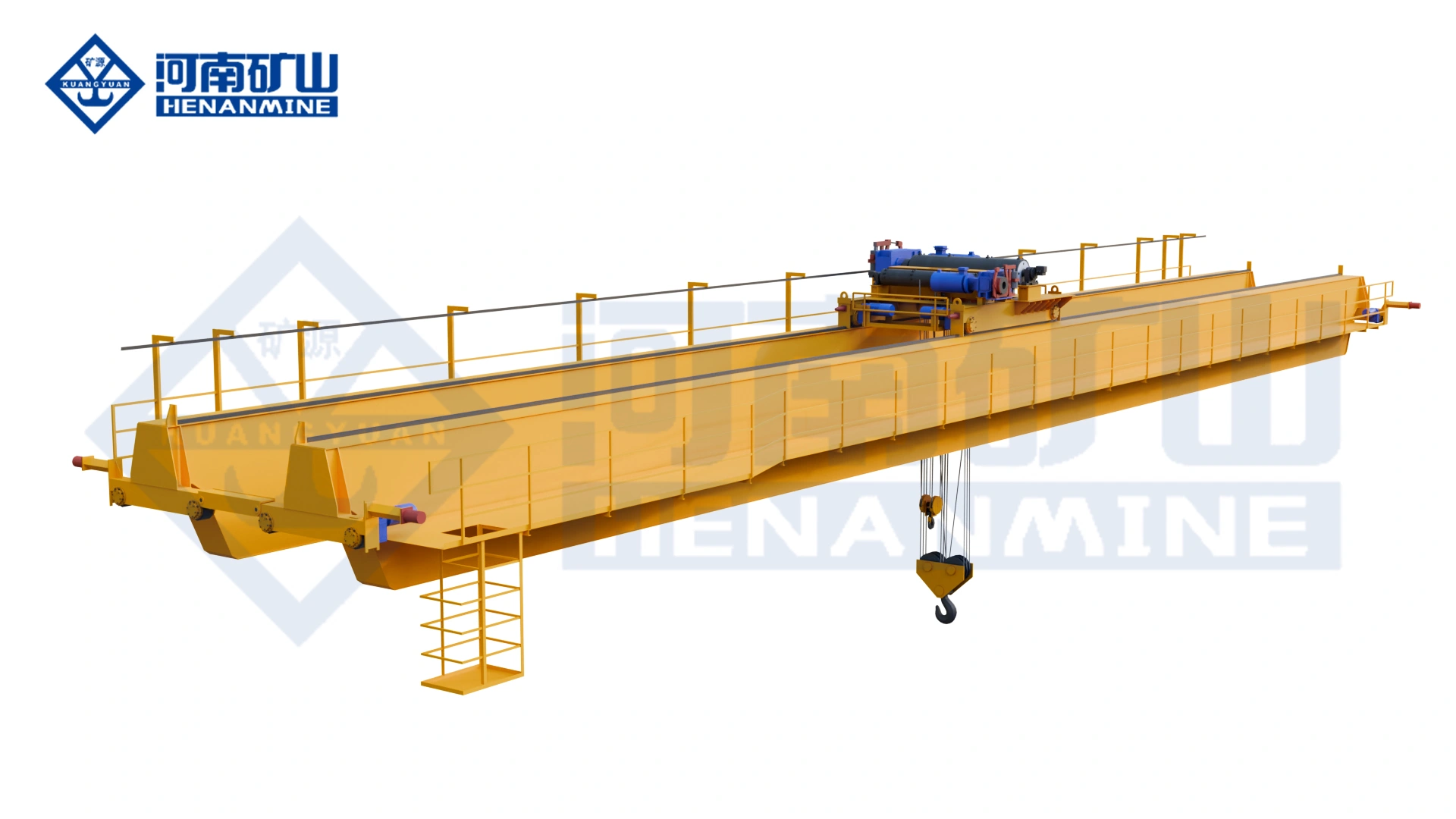

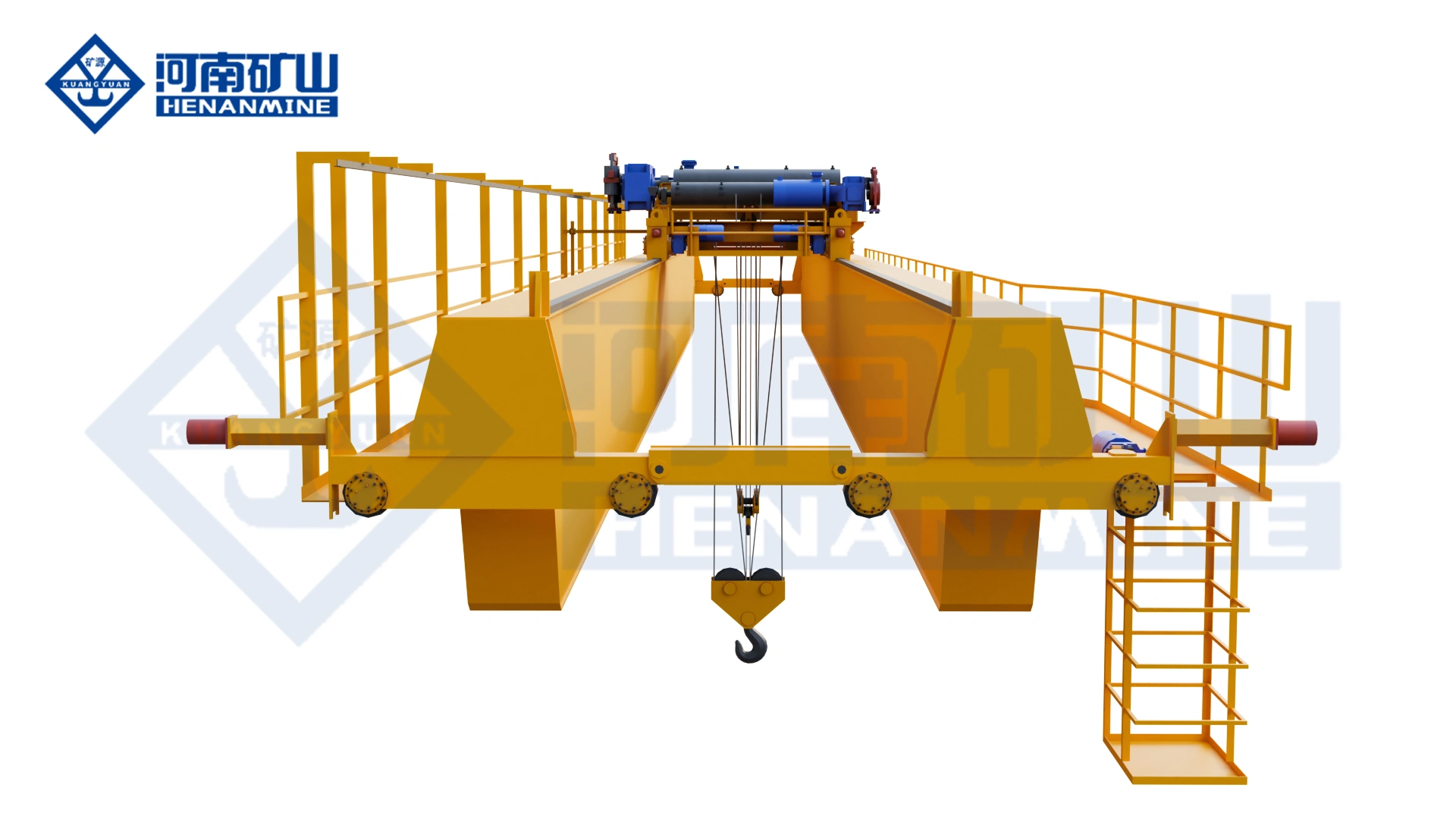

The Quenching Crane is a specialized electric overhead traveling crane manufactured by Henan Mine, designed for vertical shaft quenching processes in heat treatment workshops to rapidly immerse high-temperature workpieces into quenching media such as water, brine, or oil. It features a double-girder single-trolley structure with rapid descent capability up to 46 m/min, an emergency brake release mechanism to prevent fire hazards, and rigid guide columns with horizontal guide wheels for anti-sway positioning. The crane is equipped with high-temperature resistant C-hook spreaders, a dual-brake system for safe operation, and lifting capacities ranging from 32 to 350 tons with spans of 20 to 34 meters and lifting heights of 15 to 36 meters. The electrical control system uses Siemens PLC with absolute encoders and laser position correction for millimeter-level positioning accuracy, supporting wireless remote or fully automatic operation under high-duty cycles for continuous heavy service.

Quenching cranes are specialized bridge-type lifting equipment used in heat treatment processes to quickly immerse high-temperature workpieces in quenching liquid. They are mainly applied in fields such as metallurgy and mechanical manufacturing.

This YH quenching overhead crane is a special metallurgical overhead crane designed for heat treatment processes, featuring high-speed lifting/lowering to quickly immerse high-temperature workpieces into quenching liquid. It is widely used in metallurgy and machinery manufacturing fields, ensuring fast, stable and safe quenching operations with high efficiency and reliability.

Core Applications – Quenching Crane
1.Steel Mill Forging Shops – Rapidly immerses large forged steel shafts, rolls, and bars (up to 350 tons) into quenching wells to achieve uniform metallurgical hardness and prevent cracking.

2.Automotive Component Manufacturing – Handles precision quenching of crankshafts, gears, and transmission components requiring 3-5 second rapid cooling cycles with high repeatability.

3.Wind Energy Industry – Processes heavy wind turbine main shafts and hubs (50-100 tons) with anti-sway technology ensuring stable, accurate placement into vertical quenching tanks.

4.Aerospace & Defense – Quenches critical components like turbine blades and landing gear parts using explosion-proof designs and high-temperature alloys requiring controlled cooling rates.

5.Rail Transport Industry – Performs heat treatment of high-speed train axles and wheelsets with corrosion-resistant construction for long-term reliability under cyclic loading.

6.Heavy Machinery & Mold Making – Handles large press frames, mill rolls exceeding 80 tons, and automotive molds with precision temperature-controlled quenching and oxidation prevention.
